English- Product Category
|
|

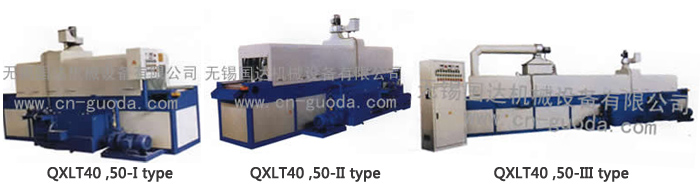

QXLT40-Ⅰ |
QXLT40-Ⅱ |
QXLT40-Ⅲ |
QXLT50-Ⅰ |
QXLT50-Ⅱ |
QXLT50-Ⅲ |
||
|
Through parts maximum size |
400X250mm |
500x360mm |
||||||
|
Charging height |
850mm |
|||||||
|
Cleaning pressure |
2.5kgf/cm2 |
3kgf/cm2 |
||||||
|
Clear rinse temperature |
Continuously adjustable from room temperature to 80 ℃, cleaning fluid automatic temperature control |
|||||||
|
Tank heating methods |
Electrical heating or steam heating |
|||||||
|
Drying methods |
----- |
---- |
The electric drying or steam drying |
------- |
------- |
The electric drying or steam drying |
||
|
Conveyor speed |
0.6～0.9m/min |
|||||||
|
Conveyor belt carrying capacity |
300kg/m2 |
|||||||
|
Pump flow |
30m3/h |
30m3/hx2 |
30m3/hx2 |
30m3/h |
30m3/hx2 |
30m3/hx2 |
||
|
Water tank heated steam consumption |
0.1t/h |
0.2t/h |
0.2t/h |
0.1t/h |
0.2t/h |
0.2t/h |
||
|
Water tank heated steam consumption |
------ |
------- |
0.2t/h |
------ |
----- |
0.2t/h |
||
|
Drying compressed air consumption |
90m3/h |
|||||||
|
Total power |
The tank electric heating, drying |
26.5KW |
51.5KW |
79.5KW |
26.5KW |
51.5KW |
79.5KW |
|
|
The tank steam heating, drying |
5.5KW |
9.5KW |
9.5KW |
5.5KW |
9.5KW |
9.5KW |
||
|
The tank steam heating, electric drying |
--------- |
--------- |
37.5KW |
--------- |
------ |
37.5KW |
||
|
Maximum Dimensions |
L |
2600 |
4150 |
6200 |
2600 |
4150 |
6200 |
|
|
B |
1500 |
1500 |
1500 |
1600 |
1600 |
1600 |
||
|
H |
2100 |
2100 |
2300 |
2200 |
2200 |
2400 |
||
QXLT60 ,70,80,90,100-III automatic through washers
QXLT60, 70,80 cleared automatically by the type washing machine technical parameters:
|
|
QXLT60 |
QXLT60 |
QXLT60 |
QXLT70 |
QXLT70 |
QXLT70 |
QXLT80 |
QXLT80 |
QXLT80 |
|
|
Maximum part size |
600X460mm |
700x560mm |
800x660mm |
|||||||
|
Charging height |
1060mm |
|||||||||
|
Cleaning pressure |
5kgf/cm2 |
|||||||||
|
Clear rinse temperature |
Continuously adjustable from room temperature to 80 ℃, cleaning fluid automatic temperature control |
|||||||||
|
Tank heating methods |
Electrical heating or steam heating |
|||||||||
|
Drying methods |
---- |
---- |
Electric or steam |
------ |
------ |
Electric or steam |
----- |
---- |
Electric or steam |
|
|
Conveyor speed |
0.15～1.5m/min |
|||||||||
|
Conveyor belt carrying capacity |
700kg/m2 |
|||||||||
|
Pump flow |
60 m3/h |
60 m3/hx2 |
60 m3/hx2 |
60 m3/h |
60 m3/hx2 |
60 m3/hx2 |
60 m3/h |
60 m3/hx2 |
60 m3/hx2 |
|
|
Water tank heated steam consumption |
0.3t/h |
0.6t/h |
0.6t/h |
0.3t/h |
0.6t/h |
0.6t/h |
0.3t/h |
0.6t/h |
0.6t/h |
|
|
The oven heated steam consumption |
----- |
---- |
0.4t/h |
----- |
---- |
0.4t/h |
----- |
---- |
0.2t/h |
|
|
Drying compressed air consumption |
120m3/h |
|||||||||
|
|
The tank electric heating, drying |
98KW |
193KW |
231KW |
98KW |
193KW |
231KW |
98KW |
193KW |
231KW |
|
The tank steam heating, drying |
14KW |
255KW |
25KW |
14KW |
25KW |
25KW |
14KW |
25KW |
25KW |
|
|
The tank steam heating, electric drying |
---- |
----- |
63KW |
----- |
----- |
63KW |
----- |
----- |
63KW |
|
|
Maximum Dimensionsmm |
4100x2300 |
6400x2300 |
8500x2300 |
4100x2400 |
6400x2400 |
8900x2400 |
4100x2500 |
6400x2500 |
8900x2500 |
|
|
|
QXLT90 |
QXLT90 |
QXLT90 |
QXLT100 |
QXLT100 |
QXLT100 |
|
|
Through parts maximum size |
900x760mm |
1000x800mm |
|||||
|
Charging height |
1060mm |
||||||
|
Cleaning pressure |
5kgf/cm2 |
||||||
|
Clear rinse temperature |
Continuously adjustable from room temperature to 80 ℃, cleaning fluid automatic temperature control |
|
|||||
|
Tank heating methods |
Electric or steam |
Steam |
Electric or steam |
Steam |
|||
|
Drying methods |
---- |
---- |
Electric or steam |
------ |
------ |
Electric or steam |
|
|
Conveyor speed |
0.15～1.5m/min |
||||||
|
Conveyor belt carrying capacity |
1000kg/m2 |
||||||
|
Pump flow |
100 m3/h |
100 m3/hx2 |
100 m3/hx2 |
100 m3/h |
100 m3/hx2 |
100 m3/hx2 |
|
|
Water tank heated steam consumption |
0.6t/h |
1.2t/h |
1.2t/h |
0.6t/h |
0.6t/h |
1.2t/h |
|
|
The drying heating steam consumption |
----- |
---- |
0.6t/h |
----- |
---- |
1.2t/h |
|
|
Drying compressed air consumption |
150m3/h |
||||||
|
Total power |
The tank electric heating, electric drying |
98KW |
193KW |
231KW |
98KW |
193KW |
231KW |
|
The tank steam heating, steam drying |
98KW |
193KW |
231KW |
98KW |
193KW |
231KW |
|
|
The tank steam heating, electric drying |
---- |
----- |
63KW |
----- |
----- |
63KW |
|
|
Maximum Dimensionsmm |
5000x2600 |
7950x2600 |
11000x2600 |
5000x2700 |
7950x2700 |
11000x2700 |
|
Note: All pictures, data is only for reference, mainly in kind.
