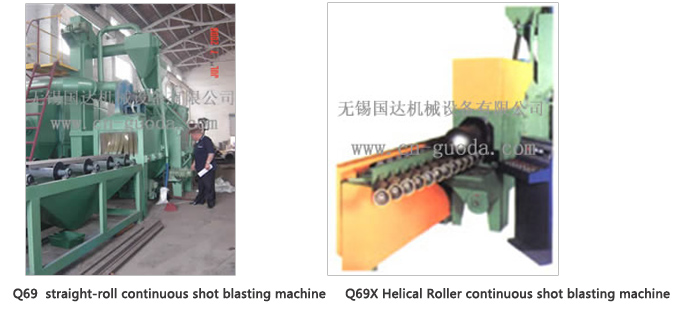

Q69 series of straight-roll continuous shot blasting machine:
suitable for longer lengths of steel, steel and steel structure (H steel).
Q69X Series Helical Roller continuous shot blasting machine:
Smaller diameter steel pipe or round, was a single column or columns on the saddle roller groove, the center and the direction of movement of the roller hearth was certain bevel drive roller hearth workpiece do spiral forwardcontinuous through shot blasting room.
Main purpose: This machine is used to a diameter less than 200mm steel pipe, round steel.
Q692 Q698 Q6910 Q6912 Q6915 Q6920 Machine Dimensions(mm) 1400*3220*5200 30400*5000*7250 12000*2000*560016 28300*5000*6362 20000*2850*6300 20000*6000*6500 Total weight(T) 4.0 16 ~16 ~19 ~18 ~25 Track the maximum load(Kg/m ) 50 500 800 200 500 1000 Track the maximum load(mm) 200 800 1000 1200 1500 2000 The workpiece transmission speed(m/min) 0.5~4 0.3~ 3 0.2~1.5 0.5~3.0 0.3~2 0.4~2 Total power(kw) ~37 ~80 ~86 ~100.93 ~63.35 约100~130
Q69G series of roller-steel pipe shot blasting machine:
Technical Profile: large diameter steel pipe by a pair of transfer roller bracket, and returns Kabuki steel side rotation side forward continuous shot blasting chamber.
The main purposes: for large diameter steel pipe (generally in more than 150mm), shot blasting before painting. Gasoline back pipeline, pipe insulation.
Model
Parameter
Note: All pictures, data is only for reference, mainly in kind.(quantity of shot blasting kg / min)
